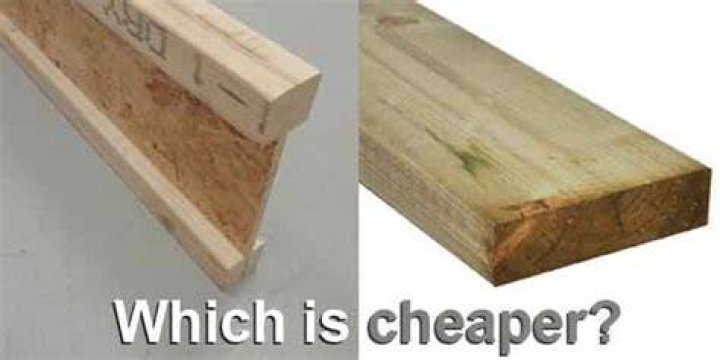

Are I joists cheaper than timber?

An advantage over lumber is that a deeper I-joist member is only incrementally more expensive than a shallower member because it is made deeper by adding more web material.

Also to know is, are TJI joists good?

The dimensional stability of TJI joists help them resist warping, twisting and shrinking that can lead to squeaky floors. TJI joists are lightweight and come in long lengths, which makes them faster and easier to install than traditional framing, and saves you both time and money.

Additionally, what is the maximum span of an I joist? Our joists are available in depths from 9 ½ to 16 inches and lengths up to 52 feet for Residential consideration and depths from 18 to 24 inches for Commercial. IB MAX-CORE I-Joists are recognized as an innovative solution to the building industry's floor and roof framing needs.

Beside this, how long can a joists be without support?

Joist Spans A live load of 60 pounds per square foot demands more support and shorter spans. Spaced at 12 inches, the joist may only span 16 feet 8 inches. At 16 inch spacing, 15 feet 2 inches and 13 feet 3 inches at 24 inch spacing.

Are floor trusses stronger than joists?

Floor trusses can span farther between bearing points than I-joists, allowing for larger open rooms. This also reduces the need and cost for extra bearing posts, beams, and footings. Floor trusses have built-in openings, which can be used to install HVAC ductwork, plumbing lines, and electrical wiring.

How big of a beam do I need to span 20 feet?

Re: 20 foot clearspan beam sizeIn that case, you need something like a 12-16" GLULAM or LVL to span the 20' and can use simple 2x8-10 dimensional lumber 16"OC as floor joists.

How far can a TJI floor joist span?

Those maximum distances vary based on joist strength, depth, and on-center spacing. According to TJI's span table, switching to deeper 11-7/8 inch joists (a nominal 2x12), even when spaced at 19.2 inches on-center, enable you to go as long as 17 feet, 4 inches and still achieve L/480.

What is the bottom of an I joist called?

An I-joist has two main parts, the web and flange. The web is sandwiched between a top and bottom flange, creating the “I” shape. The flange can be made from laminated veneer lumber or solid wood finger-jointed together for ultimate strength. It is grooved on one side to receive the web.

What does TJI joist stand for?

TJI stands for Trus Joist I-Joist (engineered floor and roof joist; trademark of Trus Joist, a Weyerhaeuser Business) Suggest new definition.

What's the difference between a truss and a joist?

Comparison chartThe joist supports the load which the floor is built to bear. A truss is used to support the roof.

What members are used to make a wood I joist?

The wood I-joist consists of a top and bottom flange that can be made from structural composite lumber (glued lumber veneer) or regular sawn lumber. These flanges are grooved to accept a 3/8 inch thick vertical web that is made from structural plywood or oriented strand board.

What are I joists made of?

I-Joist BasicsI-joists are comprised of top and bottom flanges, which resist bending, united with webs, which provide outstanding shear resistance. The flange material is typically laminated veneer lumber (LVL) or solid sawn lumber, and the web is made with plywood or OSB.

Can I use 2x6 for floor joists?

Deck Joist SpacingHow do I keep them even? In general terms, joists spaced 16 inches on center can span 1.5 times in feet their depth in inches. A 2x8 up to 12 feet; 2x10 to 15 feet and 2x12 to 18 feet. 2x6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards.

How much weight can I put on 2x10 floor joists hold?

2,200 lbs.

How much weight can a 2x8 joist hold?

some of it gets pretty technical in nature, and mostly relates to pounds / square foot of loading. 2x6s are generally used for ceiling joists, esp since you said 24" oc and reallllly short spans only (5 or 6 feet ). Most floor loads would be a minimum of 2x8 @ 16" oc and most preferbaly 2x10.

How much weight can a 2x6 joist hold?

Fine Homebuilding notes that 2-inch by 6-inch garage joists will support a weight of up to 50 pounds per square foot. If you overload your garage's ceiling joists, the ceiling may appear to sag from the strain. While your 2-inch by 6-inch joists can collapse from too much weight, such a scenario is uncommon.

How much weight can a floor joist hold?

For example, a properly designed office floor can support 50 pounds per square foot. This may seem light, but this is 50 pounds over each and every square foot of floor space. It does not mean that a 300 lb.

How much weight can a 2x12 hold?

One 2x12 can support about 180 lbs. per foot or about 2,100 lbs. total for a 12' span.

How far can you span a 2x6 Rafter?

The table states that 2 X 6 rafters spaced 16 inches on center (o.c) can span a maximum distance of 13 feet 5 inches. Another option are 2 X 8 rafters spaced 24 inches o.c.

Are I joists stronger than timber?

With respect to conventional framing (16 inches or 19.2 inches on center joist spacing), I-joists are 50 percent stiffer than solid sawn lumber. In terms of strength, for simple spans, an I-joist series with the lowest design values (PRI-20) can span to within inches of the strongest solid sawn lumber joist (S. Pine).

How long can an I beam span?

You can get a tall enough steel I-beam that will span 25 feet with no columns.

How do you size a beam for a load bearing wall?

The formula for the section modulus is beam width times beam depth squared divided by 6. A two 2-by-6 standard beam has actual dimensions of 1.5-by-5.5 inches which would give a section modulus of 1.5 x 5.5 x 5.5 / 6 = 7.6 which is not enough for this example. A 2-by-8 beam would be sufficient.

Can you use 2x4 for floor joist?

2x4s are cheap. another option might be to put plywood below the joist as well as above. This would make the plywood the stressed member and the 2x4s would be acting more like the webbing of an I beam. you don't use 2x4's for floor joists.
