Is a current carrying conductor charged?
A current-carrying wire is not electrically charged because there are as many electrons as protons in the wire. Current is the flow of charge. As long as electrons are flowing out of the wire at the same rate that they are entering the wire, no charge builds up.
.
Likewise, is a wire carrying current Charged give reason?
Answers : (1) a current carrying wire has free electrons which are moving and hence, cause the current to flow. But, there are equal positive ions present in the wire which form the resistance and hence a wire carrying current is electrically neutral.
Likewise, what is a good conductor while carrying current? Electrons carry current in a good conductor of electricity and they are negatively charged. This makes a good electrical conductor negatively charged.
Similarly, you may ask, is the neutral a current carrying conductor?
Each current-carrying conductor of a paralleled set of conductors must be counted as a current-carrying conductor. The grounded neutral conductor is considered a current-carrying conductor, but only under the conditions specified in 310.15(B)(4).
What is meant by current carrying conductor?

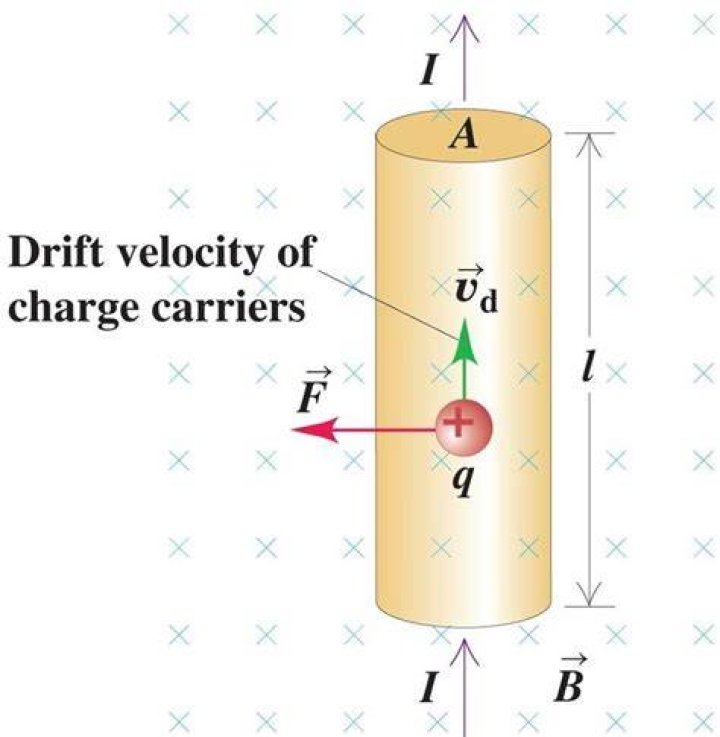

When a conductor carrying a current is placed in a magnetic field, the conductor experiences a magnetic force. The direction of this force is always right angles to the plane containing both the conductor and the magnetic field, and is predicted by Fleming's Left-Hand Rule.
Related Question Answers
What is the cause of resistance of a conductor?
An electric current flows when electrons move through a conductor, such as a metal wire. The moving electrons can collide with the ions in the metal. This makes it more difficult for the current to flow, and causes resistance.How many current carrying conductors are there?
Because the neutral conductor (in each multiwire branch circuit) carries only the unbalanced current, it is not required to count the neutrals as current-carrying conductors. Since the grounding conductors do not count, there are eight current-carrying conductors (six ungrounded and two grounded conductors).Do you count the neutral when derating?
A neutral conductor that carries only the unbalanced current of a circuit (such as the neutral conductor of a threewire, singlephase circuit, or of a fourwire, threephase circuit) is not counted for derating purposes in some cases. Grounded conductors, however, are not always neutrals.Does every light switch have to be grounded?
If you are replacing a switch a ground is not required, as per the above exception. However, if you're installing a switch; replacement or otherwise, into a metal box that is grounded. The switch will be ground via the devices yoke and mounting screws. So if the metal box is grounded, the switch is also grounded.How many conductors can a 3/4 EMT have?
Allowable Conduit Fill Capacities
| Size and Type of Conduit | 14 AWG Wire | 12 AWG Wire |
|---|---|---|
| 1/2-inch EMT | 12 | 9 |
| 3/4-inch EMT | 22 | 16 |
| 1-inch EMT | 35 | 26 |
| 1 1/2-inch EMT | 84 | 61 |
Is ground a conductor?
The planet is a good conductor, and it's huge, so it makes a handy return path for electrons. "Ground" in the power-distribution grid is literally the ground that's all around you when you are walking outside. It is the dirt, rocks, groundwater and so on.How many current carrying conductors are in a 3/4 conduit?
Take the tables in NEC annex b & c - a 3/4 emt conduit is allowed to have approx 20 # 12 thhn wires in the conduit with 3 being current carrying. But table 310-15 says that if there is 4-6 current carrying that has to be reduced to 80% ampacity capacity.How many wires are in a raceway?
12 wires and 15 No. 14 wires in single half-inch raceway.How many phases can share a grounded conductor?
three phases
How many current carrying conductors are in one conduit?
You can fit one CCC (current carrying conductor) in a 1" EMT, or you fit 20. It depends on the wire size, and the derating of conductors that you need to worry about.What is F IlB?
experiences a force ( F) given by the equation F = I l × B or F = IlB sin θ, where l is the length of the wire, represented by a vector pointing in the direction of the current. The current will experience no force if it is parallel to the magnetic field.What is the cause of magnetic field inside a human body?
The human body is a good conductor of electricity. Under the influence of an alternating current, the electric charges inside the body move back and forth at the same frequency as the field (60 Hz). In other words, the field produces weak electric currents in the body.What do u mean by magnetic field?
The magnetic field is the area around a magnet in which there is magnetic force. Moving electric charges can make magnetic fields. Magnetic fields can usually be seen by magnetic flux lines. At all times the direction of the magnetic field is shown by the direction of the magnetic flux lines.Who invented the right hand rule?
John Ambrose Fleming
