What does a dual run capacitor do?

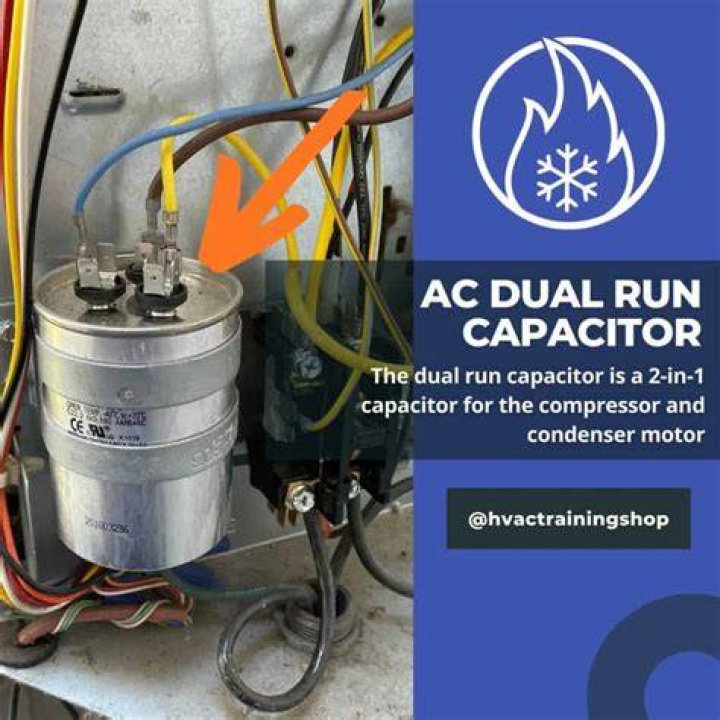

Dual run capacitorsA dual run capacitor supports two electric motors, with both a fan motor and a compressor motor. It saves space by combining two physical capacitors into one case. The dual capacitor has three terminals, labeled C for common, FAN, and HERM for hermetically-sealed compressor.

Herein, what happens when a run capacitor goes bad?

The most common problem that bad capacitors can cause is “hard starting.” This is when the compressor of an AC has difficulty starting up, stutters trying to turn on, and then shuts off a short while later. In most cases of capacitor problems, such as damage or a loss of charge, the capacitor will need to be replaced.

Similarly, can you use a dual capacitor in place of a single? Wiring up a single capacitor is easy if you simple remember that a dual round is two capacitors in one package. If the compressor side capacitor in the dual round is good but the fan side fails, the fan side can be replaced with a single. Since the compressor side cap is good it will stay connected and working.

what is the difference between a single and dual capacitor?

A single unit run capacitor hooks up to a single motor, and it is more commonly used in smaller HVAC systems, like small air conditioners. A dual run capacitor incorporates two capacitors into a single unit. With a dual run capacitor, you can power two electric motors.

What is the run capacitor filled with and why?

The run capacitor is one of two types of capacitors that could be found on single-phase compressors. The run capacitor is used to improve the running efficiency of a compressor's motor. The run capacitor is placed in series with the start winding of the compressor and will remain in the circuit as the motor operates.

What are the signs of a bad capacitor?

The most common signs and symptoms of a bad AC capacitor include:

AC not blowing cold air.
AC takes a while to start once you turn it on.
Humming sound coming from your air conditioner.
AC shuts off on its own.
AC won't turn on.

What are the symptoms of a bad capacitor?

Here are some common symptoms of a bad AC capacitor.

AC Not Blowing Cold Air. An air conditioner that doesn't blow cold air is one of the first signs of a problem many homeowners notice.
High and Rising Energy Bills.
Humming Noise.
Old HVAC System.
AC Turns Off On Its Own.
AC Doesn't Turn On Immediately.
AC Won't Turn On.

Will AC fan run if capacitor is bad?

Symptoms Of a Bad HVAC CapacitorIf you take a stick and spin the fan blade and the condenser fan starts to run, the run capacitor has likely failed. Even though the fan is operating, we recommend that the AC unit should be shut off. Without the run capacitor in the circuit, the motor will pull excess amperage.

How long do AC capacitors last?

approximately 20 years

Will a bad capacitor cause a motor to run hot?

Changing out a capacitor is a simple, inexpensive problem that most all homeowners can fix easily if you are good with your hands and have the right capacitor. Weak or bad capacitors can also cause blower motors to not run or to run slow.

Will an electric motor run with a bad capacitor?

There are also a number of symptoms that will tell you if the capacitor on a motor is faulty: The motor will not start its load, but if you spin the load by hand, the motor will run properly. Short-circuited capacitors will show zero resistance when measured with an ohmmeter.

How often should you replace AC capacitor?

To make sure your A/C unit is always running at its peak performance and to make sure you get the full lifespan out of that capacitor, be sure to routinely schedule preventative maintenance every six months, look out for the signs of a bad capacitor, and if all else fails, give us a call.

Why does my AC have two capacitors?

The Dual Round Capacitors are simply the way engineers are trying to save on space and cost. They could have put two separate capacitors in an HVAC unit but combined them into one package. A dual capacitor will most often have one side to start the compressor (Herm) and the other side to start the condensing fan motor.

How many capacitors should a ceiling fan have?

Ceiling fan motor capacitors can have two (2) to five (5) wires in different arrangements, so don't worry if your ceiling fan capacitor looks different than mine.

What does VAC mean on capacitor?

volts alternating current

How do you test a ceiling fan capacitor?

Place the leads of the ohm meter on the wires that run from the capacitor to the motor. Count to three while the leads on the meter charge the capacitor. Reverse the leads on the capacitor. Look for movement of the needle on the meter toward infinite ohms.

Do heat pumps have capacitors?

Generally, a heat pump is fitted with 2 types of capacitors. They include a start capacitor which sends a jolt to start the motor, and a run capacitor which sends a regular series of jolts to maintain the running of the motor. Capacitors can fail out completely or simply lose their strength.

Why do run capacitors fail?

These capacitors will occasionally fail, causing a compressor to fail to start. Overheating is a primary cause of a failed start capacitor. The damaged contacts could be caused by the high voltage stored in a start capacitor being discharged across the contacts of a start relay.

Can I replace a capacitor with a higher UF?

You can almost always replace a capacitor with one of a higher voltage. This is the limiting factor of a capacitor due to dielectric breakdown voltages that the manufacturer chose. Varying capacitance gets a little trickier.

How do you tell a start capacitor from a run capacitor?

The start capacitor creates a current to voltage lag in the separate start windings of the motor. The current builds up slowly, and the armature has an opportunity to begin rotating with the field of current. A run capacitor uses the charge in the dielectric to boost the current which provides power to the motor.

Can I use a run capacitor in place of a start capacitor?

According to me, if we use run capacitor as start capacitor, there won't be any problem. Yes, the starting characteristics may not up to the mark, motor may take higher starting current with lower torque.

What does 25 70 21 Mean on a capacitor?

Examples include 55/100/56, 40/85/21, 40/105/21, 40/100/56, -25/70/21, etc. This code is called the Climatic Category and consists of the climatic conditions that can be present when the capacitor is in use. It does not describe any other parameters of the capacitor such as capacitance, voltage rating or package.

Can I bypass a capacitor?

In this case, the bypass capacitor is a first line of defense. It eliminates voltage droops on the power supply by storing electric charge to be released upon the occurrence of a voltage spike. Moreover, it accomplishes this task at a wide range of frequencies by creating a low-impedance path to ground for the supply.

What is the role of capacitor in fan?

The fan has an AC single phase motor. Now when capacitor is added to the additional auxiliary winding of stator it creates field which leads by 90 degree to main winding field so we get two field which are 90 degrees to each other, resulting a rotating field responsible for start of the fan motor.
