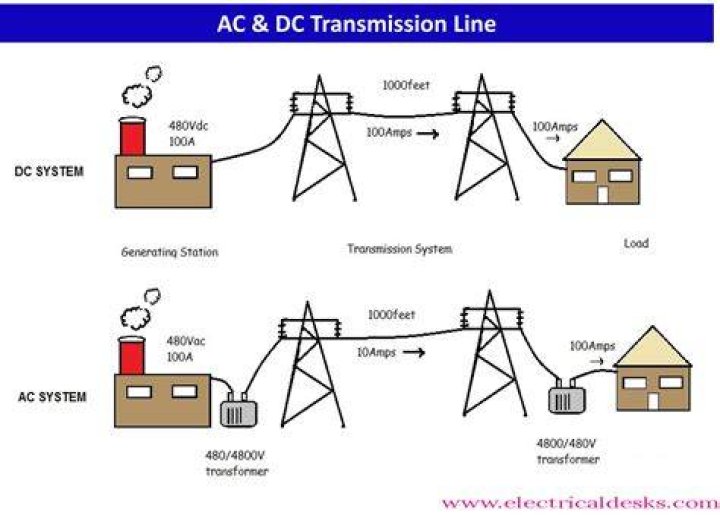

What is DC and AC resistance of transmission line?

Answer: The resistance offered by a conductor for both AC and DC is different, the resistance offered 2 DC by conductor is known as DC resistance while the resistance offered to AC is known as AC resistance or effective resistance. For a given conductor AC resistance is more than its DC resistance.

People also ask, what is the AC equivalent to DC resistance?

So when using resistors in AC circuits the term Impedance, symbol Z is the generally used to mean its resistance. Therefore, we can correctly say that for a resistor, DC resistance = AC impedance , or R = Z.

Beside above, what is DC resistance test? DC resistance. The electrical resistance of a conductor is essentially dependent on its temperature and the frequency of the voltage. You can easily circumvent the frequency dependence by using a DC power source during the measurement. Here, the term DC resistance is used.

Besides, what is the relationship between the impedance in an AC circuit and resistance in a DC circuit?

Resistance is a concept used for DC (direct currents) whereas impedance is the AC (alternating current) equivalent. Resistance is due to electrons in a conductor colliding with the ionic lattice of the conductor meaning that electrical energy is converted into heat.

What is resistance of transmission line?

So far as the source of V(0, t) is concerned, the transmission line behaves in exactly the same way as a resistor of value √(L/C). We call this resistance the characteristic impedance of the transmission line. The characteristic impedance of free space, for waves propagating through a vacuum, is 377 Ω.

Does Ohm's Law apply to AC and DC?

Ohm's Law is valid for both direct current (DC) and alternating current (AC). Note that in AC circuits consisting of purely resistive elements, the current and voltage are always in phase with each other.

Are resistors AC or DC?

Resistors are “passive” devices, that is they do not produce or consume any electrical energy, but convert electrical energy into heat. So when using resistors in AC circuits the term Impedance, symbol Z is the generally used and we can say that DC resistance = AC impedance, R = Z.

What is the meaning of RMS?

root mean square

What is the formula to find resistance?

If you know the total current and the voltage across the whole circuit, you can find the total resistance using Ohm's Law: R = V / I. For example, a parallel circuit has a voltage of 9 volts and total current of 3 amps. The total resistance R_T = 9 volts / 3 amps = 3 Ω.

How do you find the voltage in a DC circuit?

Through Ohm's law, you can calculate the voltage (V), current (I) and resistance (R) of a DC circuit. From that you can also calculate the power at any point in the circuit. Follow Ohm's law: Voltage (V) = Current (I) times Resistance (R).

Is a parallel circuit AC or DC?

When two or more electrical components are connected in a way that one end of each component is connected to a common point and the other end is connected to another common point, then the electrical components are said to be connected in parallel, and such an electrical DC circuit is referred as a parallel DC circuit.

What is ac analysis?

The AC analysis is a small signal analysis in the frequency domain. Basically this type of simulation uses the same algorithms as the DC analysis (section 3.1 on page. ). The AC analysis is a linear modified nodal analysis. Thus no iterative process is necessary.

What is power factor in AC circuit?

In AC circuits, the power factor is the ratio of the real power that is used to do work and the apparent power that is supplied to the circuit. The power factor can get values in the range from 0 to 1. When all the power is reactive power with no real power (usually inductive load) - the power factor is 0.

What is the unit of impedance?

ohm

How do you reduce voltage in an AC circuit?

How to Reduce Voltage in Half. To reduce voltage in half, we simply form a voltage divider circuit between 2 resistors of equal value (for example, 2 10KΩ) resistors. To divide voltage in half, all you must do is place any 2 resistors of equal value in series and then place a jumper wire in between the resistors.

What exactly is impedance?

Electrical impedance is the measure of the opposition that a circuit presents to a current when a voltage is applied. Impedance extends the concept of resistance to AC circuits, and possesses both magnitude and phase, unlike resistance, which has only magnitude.

What is the unit of reactance?

Reactance is mathematically symbolized by the letter “X” and is measured in the unit of ohms (Ω). Impedance is a comprehensive expression of any and all forms of opposition to electron flow, including both resistance and reactance. It is present in all circuits, and in all components.

What is I in Ohm's law?

A law relating the voltage difference between two points, the electric current flowing between them, and the resistance of the path of the current. Mathematically, the law states that V = IR, where V is the voltage difference, I is the current in amperes, and R is the resistance in ohms.

What is meant by voltage drop?

Voltage Drop - Definition. Voltage drop is defined as the amount of voltage loss that occurs through all or part of a circuit due to impedance. A common analogy used to explain voltage, current and voltage drop is a garden hose. Voltage is analogous to the water pressure supplied to the hose.

What is impedance and its formula?

Staff Answer. Line impedance is the ratio of complex line voltage to complex line current. You can calculate it with the following equation: Z(z) = V(z)/I(z).

How is DC resistance measured?

To measure true DC, resistance ohmmeters typically use 4 wire measurement. DC current is passed through the Rx and through the ohmmeter's internal standard. The voltage across the Rx and the internal standard is then measured and the ratio of the two readings is used to calculate the resistance.

What is direct current resistance?

Direct Current Resistance – The DCR is defined as the resistance of an inductor as a result of the resistance of the wire used in the winding. Objects that are designed to have a specific resistance so that they can dissipate electrical energy or otherwise modify how a circuit behaves are called resistors.

What is a loop impedance test?

Loop testing demystified. The main reason for earth loop impedance testing – which is often simply called loop testing – is to verify that, if a fault occurs in an electrical installation, sufficient current will flow to operate the fuse or circuit breaker protecting the faulty circuit within a predetermined time.

Why do we do winding resistance test?

The main purpose of this test is to check for gross differences between windings and for opens in the connections. Measuring the resistance of transformer windings assures that each circuit is wired properly and that all connections are tight.
