What is the inside diameter of 1 inch EMT conduit?

electrical metallic tubing (EMT)

Trade size, inches	Metric desig- nator	Diameter
Trade size, inches	Metric desig- nator	outside
½	16	0.706
¾	21	0.922
1	27	1.163

Also to know is, what is the inside diameter of 1 inch conduit?

Aluminum Rigid Conduit (ARC)

Trade Size	Metric Designator	Outside Diameter*
*Tolerances: 1/2 to 1-1/2 trade sizes +/- 0.15 in. 2 to 6 trade sizes +/- 1%. Each length of conduit with coupling attached will be nominally 10 feet
1/2	16	0.840
3/4	21	1.05
1	27	1.315

what is the ID of 1 EMT conduit? Electrical Metallic Tubing(EMT) - Thinwall Conduit

Conduit Trade Size		Inside Diameter
(in)	(mm)	(in)
1/2	16	0.622
3/4	21	0.824
1	27	1.049

Correspondingly, is conduit size ID or OD?

The ID and OD For instance, a 1-inch rigid conduit will have an ID of 1.063 inch nominal while a 1 inch intermediate metallic conduit will have an ID of 1.12 inch nominal, yet both have the same knockout size of 1.375 inches.

What size is conduit?

Most Common Sizes of Conduit A ¾-inch to 1½-inch conduit is usually the accepted size range for conduit in most areas of the country.

What is the inside diameter of 1/2 EMT?

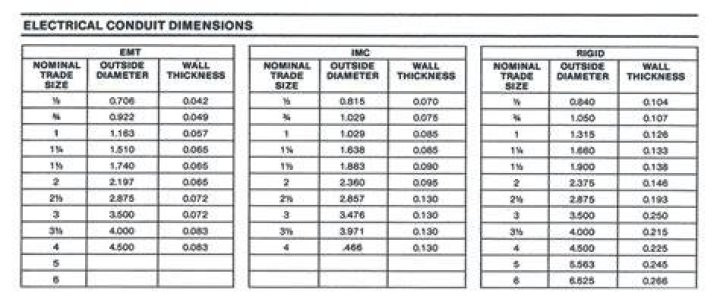

Outside Diameter of Conduit
Size	EMT	Rigid
1/2"	0.706	0.84
3/4"	0.922	1.05
1"	1.163	1.315

Is EMT measured ID or OD?

Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS).

OD and Nominal Pipe Size.

Nominal Pipe Size	Outside Diameter (inches)
1"	1.315
1-1/4"	1.66
1-1/2"	1.9
2"	2.375

Does EMT conduit rust?

Typical EMT Type conduit will resist rust for a few years. It is however inevitable that it will rust. On the other hand there have been times when the conduit has rusted on parts of its surface having been exposed to the outdoor elements for one or two seasons.

How is EMT conduit measured?

Measure from the end of the conduit and make a mark at 7 inches to indicate the start of the bend. Slip the end of the conduit into the bender so the 7-inch mark is aligned with the arrow. This 7 inches, plus the "Stubs 5 to arrow" will give you the total horizontal run of 12 inches, including the bend.

Is EMT galvanized?

Electrical Metallic Tubing—EMTAnother example of a rigid electrical conduit is EMT (electrical metal tubing), which is most commonly made of galvanized steel but can also be aluminum. The tubing itself is not threaded like RMC and IMC.

What is the OD of 3 inch EMT?

ACTUAL OUTER DIAMETER

THIN WALL INCH SIZE (E.M.T.)		ACTUAL OUTSIDE DIAMETER
2 1/2"	=	2.875"
3"	=	3.500"
3 1/2"	=	4.000"
4"	=	4.500"

What is the outside diameter of 3/4 inch EMT conduit?

EMT Conduit of trade size 3/4-Inch, has outside diameter of 0.922-Inch and wall thickness of 0.049-Inch.

Is EMT conduit aluminum?

EMT is a common, thinly-walled conduit pipe that is often chosen in place of galvanized rigid conduit. It is made out of coated steel and aluminum.

Is pipe diameter internal or external?

In short: Tube is measured by outside diameter, pipe is measured by inside diameter. There is often confusion as to which size die the customer actually needs - Pipe Size or Tubing Size. Keep in mind that pipe size refers to a nominal - not actual - inside pipe diameter. Schedule refers to the pipe's wall thickness.

Is nominal pipe size OD or ID?

NPS – Nominal Pipe SizeNPS is not an OD or ID of the pipe it is in-between the outer and the inner diameter of the pipe but not exactly in the middle of it. For example, NPS 2 size pipe outside diameter is 60 mm or 2.375 inches.

What does Schedule 40 mean?

Nominal Pipe Size. Specific pipe is identified by pipe diameter and another non-dimensional number for wall thickness referred to as the Schedule (Sched. or Sch., for example – "2-inch diameter pipe, Schedule 40").

How do you measure wall thickness?

How to Calculate Wall Size Based on OD and ID

Subtract the inside diameter from the outside diameter of the pipe. The result is the combined thickness of the pipe walls on both sides of the pipe.
Divide the total pipe wall thickness by two. The result is the size, or thickness, of one pipe wall.
Check for errors by reversing the calculations.

What is EMT connector?

Compression type is concrete-tight while set screw is concrete-tight when properly taped. EMT connectors are used to secure EMT conduits to electrical metallic box. EMT couplings are used to couple two EMT pipes together, or an EMT pipe and a Rigid/IMC pipe together.

What is a trade size?

Trade size is the term used to denote common vernacular in the industry. i.e. Instead of saying the dimension you just say Trade size 1 meaning 1" conduit. It is intended as a way to use common language when writing.

What does nominal size mean?

Measurement. In manufacturing, a nominal size or trade size is a size "in name only" used for identification. The nominal size may not match any dimension of the product, but within the domain of that product the nominal size may correspond to a large number of highly standardized dimensions and tolerances.

How many wires can be in a conduit chart?

Allowable Conduit Fill Capacities

Size and Type of Conduit	14 AWG Wire	10 AWG Wire
3/4-inch EMT	22	10
1-inch EMT	35	16
1 1/2-inch EMT	84	38
1/2-inch PVC—Sch 40	11	5

What is the maximum electrical trade size of intermediate conduit?

IMC Weights and Dimensions

Trade Size Designator		Nominal Wt. per 100 Ft. (30.5m)
3/4	21	84
1	27	119
1 1/4	35	158

What size rigid metal conduit should be used?

Galvanized Rigid Conduit (GRC)

Trade Size	Metric Designator
Tolerances: Trade Size 1/2 to 1-1/2: ±0.015” (0.38mm); Trade Size 2-6: ±1% Length equals 10 ft. (3.05m) with a tolerance of +/- .25 in. (6.35mm) * For information only. Not a requirement of the UL standard. ***NEMA RN-3 Standard
1/2	16
3/4	21
1	27
